Shaft type Mill Roll Stand, Two Kraft Paper Reel, Manual or Eletrical Lift-down

Name: Shaft type Mill Roll Stand, Two Kraft Paper Reel, Manual or Eletrical Lift-down
Brand: Yush
SKU: ZJ
Price: 3000 USD
Availability: InStock
Rating: 4.9 (197 reviews)

Shaft type Mill Roll Stand, Two Kraft Paper Reel, Manual or Eletrical Lift-down supplier

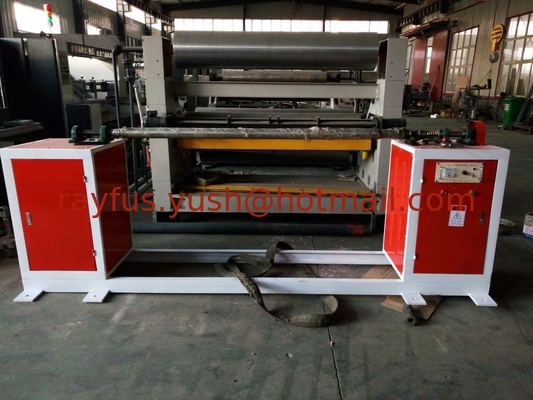

Large Image : Shaft type Mill Roll Stand, Two Kraft Paper Reel, Manual or Eletrical Lift-down

Product Details:

Place of Origin:	China
Brand Name:	Yush
Certification:	CE
Model Number:	ZJ

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	FOB: 3000~5000USD
Packaging Details:	Plastic Film or Wooden Box
Delivery Time:	15~30 working days
Payment Terms:	T/T
Supply Ability:	30 sets per month
Minimum Order Quantity:	1 set

Contact Now

Detailed Product Description

Automatic Grade:	Semi-Automatic	Voltage:	220v/380v/440v
Condition:	New	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Driven Type:	Electric	Certification:	CE
Name:	Corrugated Cardboard Single Facer Line	Color:	Customized Color
Machine Type:	Corrugated Machine/single Facer Machine With Low Price	Usage:	Corrugated Making
Warranty:	One Year
High Light:	Shaft type Mill Roll Stand , Shaft type Paper Reel Stand , Corrugated Carton Making Machine

ZJ Shaft type Mill Roll Stand

1) ZJ Shaft type Mill Roll Stand support two paper mill rolls on both sides at the same time.

2) Electrical or manual install paper reel, left-right adjustable.

3) Low cost, good quality, easy operation, long use-life.

Max Paper Roll Width	1000~2000mm
Max Paper Roll Diameter	1200mm
Max Paper Roll Weight	2000kg

DW-60 Single Facer Corrugating Line

1) DW-60 Single Facer Corrugated Cardboard Production Line consists of three single machines, Shaft type Mill Roll Stand, Finger type Single Facer, Rotary Cutter, etc.

2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width	1000~2000mm
Max Paper Roll Diameter	1200mm
Max Paper Roll Weight	2000kg
Corrugating Roller	Φ245mm, 45# steel, heated & grinded, Chrome-plated
Cutting Length	400~2400mm
Cutting Precision	±2.5mm
Design Speed	60m/min
Heating Method	Electrical Heating
Economic Working Speed	20~40m/min
