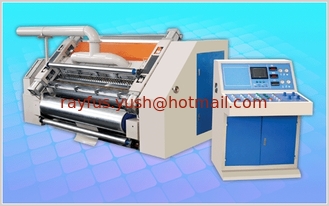

Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model

China Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model supplier
Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model supplier Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model supplier Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model supplier Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model supplier Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model supplier Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model supplier

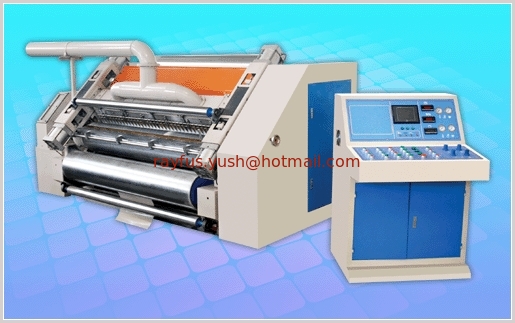

Large Image :  Fingerless type Single Facer Corrugated Machine, Vacuum Suction Model

Product Details:

Place of Origin: China
Brand Name: Yush
Certification: CE
Model Number: SF-S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: FOB: 25000~100000USD
Packaging Details: Plastic Film or Wooden Box
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Minimum Order Quantity: 1 set
Detailed Product Description
High Light:

Fingerless type Single Facer Corrugated Machine

,

Vacuum Suction Single Facer Corrugated Machine

,

Corrugated Cardboard Making Machine

SF-S Fingerless type Single Facer Corrugator Machine



1) SF-S Fingerless type Single Facer Corrugator Machine drive reducer box with oil immersed type lubricating to reduce noise keep running stable. Adopt gimbals transmission. Separate power.

2) Corrugating roller, pressure roller and glue roller by pneumatic adjustment.

3) Paper transmit adopt vacuum suction method, with wind control system, to keep flute profiles stable of the lower-roller in the condition of running up.

4) Bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly.

5) Upper-lower corrugating rollers are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness HRC58°-60°, surface after grinded. Gluing roller surface are treated by special mesh snick and chrome-plated.

6) Motorized or manual glue width dividing to match the paper width.



Max Effective Width

1100~2200mm

Flute Type

customer-made

Corrugating Roller

Φ280~380mm, 48CrMo alloy steel, hardness HRC58°-60°

Design Speed

80~200m/min

Heating Method

Steam Heating

Economic Working Speed

60~160m/min

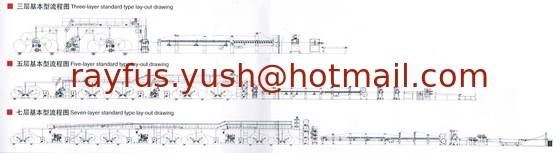

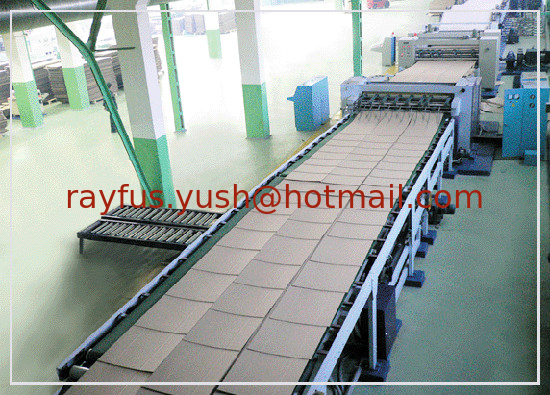

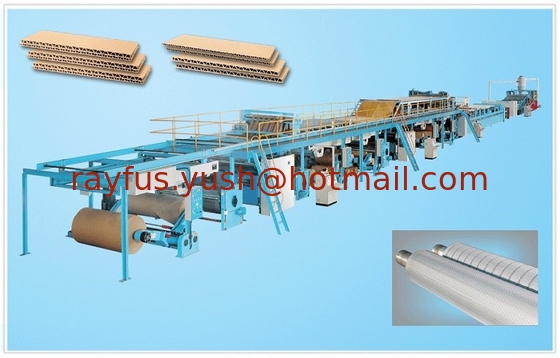

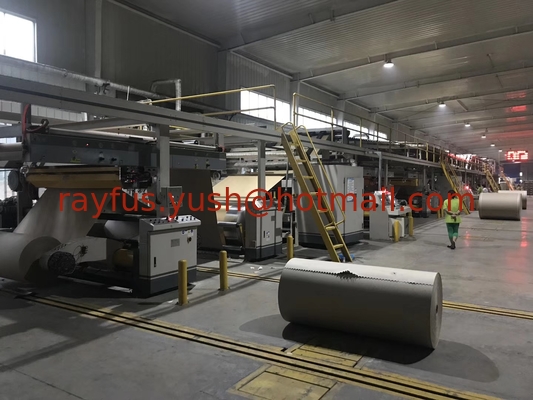

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
