Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating

China Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating supplier
Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating supplier Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating supplier Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating supplier Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating supplier Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating supplier Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating supplier

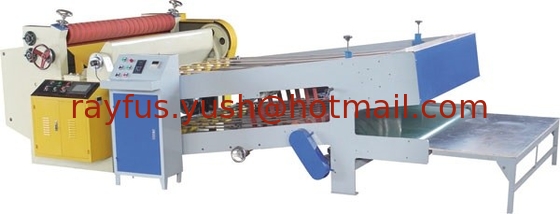

Large Image :  Single Facer Corruagtor Machine, Fingerless Vacuum Suction type, Steam Heating

Product Details:

Place of Origin: China
Brand Name: Yush
Certification: CE
Model Number: SF-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB: 25000~40000USD
Packaging Details: Plastic Film or Wooden Box
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detailed Product Description
Automatic Grade: Automatic Voltage: 220v/380v/440v
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Driven Type: Electric Certification: CE
Name: Single Facer 2 Layer Corrugated Paperboard Production Line Color: Customized Color
Machine Type: Corrugated Paperboard Making Machine Usage: Corrugated Making
Warranty: One Year

SF-S Fingerless type Single Facer Corrugator Machine

1) SF-S Fingerless type Single Facer Corrugated Machine drive reducer box with oil immersed type lubricating to reduce noise keep running stable. Adopt gimbals transmission. Separate power.

2) Corrugating roller, pressure roller and glue roller by pneumatic adjustment.

3) Paper transmit adopt vacuum suction method, with wind control system, to keep flute profiles stable of the lower-roller in the condition of running up.

4) Bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly.

5) Upper-lower corrugating rollers are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness HRC58°-60°, surface after grinded. Gluing roller surface are treated by special mesh snick and chrome-plated.

6) Motorized or manual glue width dividing to match the paper width.

Max Effective Width

1100~2200mm

Flute Type

customer-made

Corrugating Roller

Φ280~380mm, 48CrMo alloy steel, hardness HRC58°-60°

Design Speed

80~200m/min

Heating Method

Steam Heating

Economic Working Speed

60~160m/min





DW-80 Single Facer Corrugation Line

1) This product line consists of three single machines, Electrical Shaftless Mill Roll Stand, SF-280 Fingerless type Single Facer, NC Rotary Cutter, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.



Max Effective Width 1100~2200mm
Max Paper Roll Diameter 1400mm
Max Paper Roll Weight 2000kg
Corrugating Roller Φ280mm, 48CrMo alloy steel, hardness HRC58°-60°
Cutting Length 300~9999mm
Cutting Precision ±1.5mm
Design Speed 80m/min
Heating Method Steam Heating
Economic Working Speed 60~80m/min



Single Facer Corrugation Line, Mill Roll Stand + Single Facer + Rotary Cutter

Single Facer Corrugation Line, Mill Roll Stand + Single Facer + Rotary Cutter

Single Facer Corrugation Line, Mill Roll Stand + Single Facer + Rotary Cutter

Single Facer Corrugation Line, Mill Roll Stand + Single Facer + Rotary Cutter
