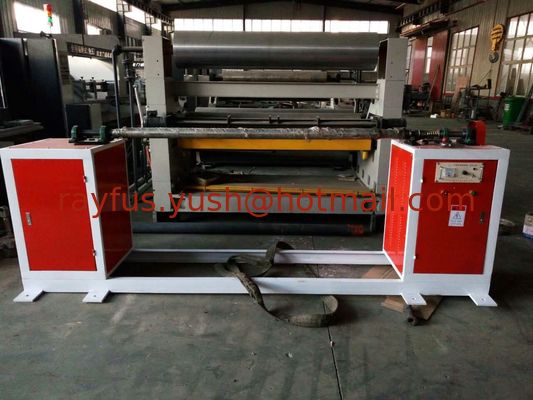

Single Faced Rotary Cutter, Single Faced Corrugated Cardboard Slitting + Cutting

Name: Single Faced Rotary Cutter, Single Faced Corrugated Cardboard Slitting + Cutting
Brand: Yush
SKU: DWQJ
Price: 8000 USD
Availability: InStock
Rating: 4.7 (196 reviews)

Single Faced Rotary Cutter, Single Faced Corrugated Cardboard Slitting + Cutting supplier

Large Image : Single Faced Rotary Cutter, Single Faced Corrugated Cardboard Slitting + Cutting

Product Details:

Place of Origin:	China
Brand Name:	Yush
Certification:	CE
Model Number:	DWQJ

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	FOB: 8000~12000USD
Packaging Details:	Plastic Film or Wooden Box
Delivery Time:	15~30 working days
Payment Terms:	T/T
Supply Ability:	15 sets per month
Minimum Order Quantity:	1 set

Contact Now

Detailed Product Description

Automatic Grade:	Semi-Automatic	Voltage:	220v/380v/440v
Condition:	New	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Driven Type:	Electric	Certification:	CE
Warranty:	One Year	Name:	Single Facer 2 Layer Corrugated Paperboard Production Line
Color:	Customizable	Machine Type:	Corrugated Machine/single Facer Machine With Low Price
Usage:	Corrugated Making
High Light:	Single Faced Rotary Cutter , Rotary Roll to Sheet Cutter , Corrugated Carton Making Machine

DWQJ Single Faced Rotary Cutter

1) DWQJ Single Faced Rotary Cutter rational mechanical structure, strong form, good stability, long use-life.

2) All operation control on the same side, easy to operate, photo-electric counter.

Max Effective Width	1000~2000mm
Slitting	4-slitter
Cutting Length	400~2400mm
Cutting Precision	±2.5mm
Design Speed	80m/min

DW-60 Single Facer Corrugating Line

1) DW-60 Single Facer Corrugated Cardboard Production Line consists of three single machines, Shaft type Mill Roll Stand, Finger type Single Facer, Rotary Cutter, etc.

2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for small or medium carton factories.

Max Effective Width	1000~2000mm
Max Paper Roll Diameter	1200mm
Max Paper Roll Weight	2000kg
Corrugating Roller	Φ245mm, 45# steel, heated & grinded, Chrome-plated
Cutting Length	400~2400mm
Cutting Precision	±2.5mm
Design Speed	60m/min
Heating Method	Electrical Heating
Economic Working Speed	20~40m/min
