Hydraulic Shaftless Mill Roll Stand, Two Kraft Paper Reel, Hydraulic Lift-down
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Automatic Grade: | Automatic | Voltage: | 220v/380v/440v |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Driven Type: | Hydraulic | Certification: | CE |
| Warranty: | One Year | Name: | Single Facer 2 Layer Corrugated Paperboard Production Line |
| Color: | Customized Color | Machine Type: | Corrugated Paperboard Making Machine |
| Usage: | Corrugated Making |
ZJ-Y Hydraulic Shaftless Mill Roll Stand
1) ZJ-Y Hydraulic Shaftless Mill Roll Stand two sets of Paper Vehicle and Track Rail will be provided for each Mill Roll Stand, to transfer the Paper Mill Roll.
2) Adopt double symmetrical shafts with four arms; Support two paper mill rolls on both arms at the same time.
3) Hydraulic control for paper mill roll up-down, electrical clamp-open and centering.
4) Web tension is controlled by pneumatic brake or manual brake.
5) Automatic expansion springiness chucks to reduce paper waste.
|
Max Paper Roll Width
|
1100~2200mm |
|
Max Paper Roll Diameter |
1500mm |
|
Max Paper Roll Weight |
3000kg |

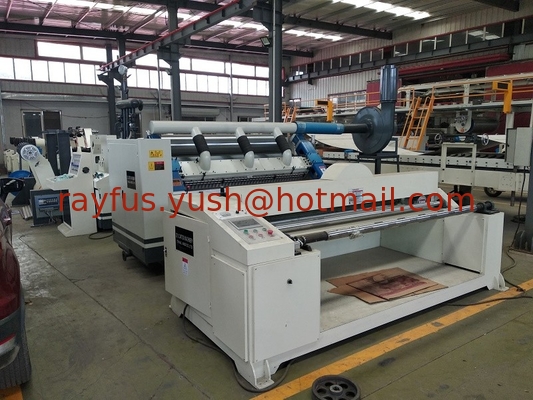

DW-120 Single Facer Corrugation Line
1) This product line consists of Hydraulic Shaftless Mill Roll Stand, Auto Splicer, Preheater, SF-320S Fingerless type Single Facer, NC Single Faced Slitter Cutter Stacker, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. Good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.
| Max Effective Width | 1100~2200mm |
| Max Paper Roll Diameter | 1500mm |
| Max Paper Roll Weight | 3000kg |
| Corrugating Roller | Φ320mm, 48CrMo alloy steel, hardness HRC58°-60° |
| Cutting Length | 300~9999mm |
| Cutting Precision | ±1mm |
| Design Speed | 120m/min | |
| Heating Method | Steam Heating | |
| Economic Working Speed | 80~100m/min | |
