Single Faced Slitter Cutter Stacker, Single Faced Corrugated Cardboard Slitting + Cutting
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Automatic Grade: | Automatic | Voltage: | 220v/380v/440v |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Driven Type: | Electric | Certification: | CE |
| Warranty: | One Year | Name: | Single Facer 2 Layer Corrugated Paperboard Production Line |
| Color: | Customized Color | Machine Type: | Corrugated Paperboard Making Machine |
| Usage: | Corrugated Making |
DWD-NC Single Faced Slitter Cutter Stacker
1) Computer system to keep order. Man-machine conversation system NC. Automatic adjust cutting speed by cardboard specification and maching.
2) The screen display various production message, we could consult, modification, superaddition and cancel order during running.
3) High quality servo motor, the servo drive system import from Germany.
4) Transmission system adopts oil pump auto-Cye lubricate.
5) Exact and adjustable no gap gear assure knife-edge joggle exactly, good incision quality, high beeline degree, protect knives.
6) Conveyor system after the slitter and cutter is applied to delivery the board on two direction, for rise efficiency and easy stacking.
7) It will be more suitable for large or moderate manufactories of offset printing box.
|
Max Effective Width |
1100~2200mm |
|
Slitting |
4-slitter |
|
Cutting Length |
300~9999mm |
|
Cutting Precision |
±1.0mm |
|
Design Speed |
120m/min |
DW-120 Single Facer Corrugation Line

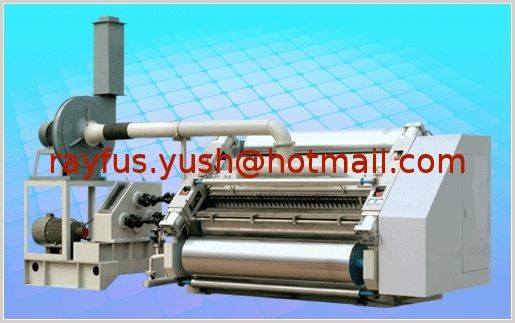

1) This product line consists of Hydraulic Shaftless Mill Roll Stand, Auto Splicer, Preheater, SF-320S Fingerless type Single Facer, NC Single Faced Slitter Cutter Stacker, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. Good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.
| Max Effective Width | 1100~2200mm |
| Max Paper Roll Diameter | 1500mm |
| Max Paper Roll Weight | 3000kg |
| Corrugating Roller | Φ320mm, 48CrMo alloy steel, hardness HRC58°-60° |
| Cutting Length | 300~9999mm |
| Cutting Precision | ±1mm |
| Design Speed | 120m/min | |
| Heating Method | Steam Heating | |
| Economic Working Speed | 80~100m/min | |
