Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting

China Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting supplier
Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting supplier Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting supplier Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting supplier Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting supplier Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting supplier Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting supplier

Large Image :  Single Faced Rotary Sheeter, Single Faced Corrugated Cardboard Slitting + Cutting

Product Details:

Place of Origin: China
Brand Name: Yush
Certification: CE
Model Number: DWQJ-Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB: 8000~12000USD
Packaging Details: Plastic Film or Wooden Box
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Automatic Grade: Semi-Automatic Voltage: 220v/380v/440v
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Driven Type: Electric Certification: CE
Name: Corrugated Cardboard Single Facer Line Color: Customized Color
Machine Type: Corrugated Paperboard Making Machine Usage: Corrugated Making
Warranty: One Year

DWQJ-Z Single Faced Rotary Sheeter

1) DWQJ-Z Single Faced Rotary Sheeter rational mechanical structure, strong form, good stability, long use-life.

2) All operation control on the same side, easy to operate, photo-electric counter.

Max Effective Width

1100~2200mm

Slitting

4-slitter

Cutting Length

400~2400mm

Cutting Precision

±2.5mm

Design Speed

80m/min



DW-80 Single Facer Corrugation Line

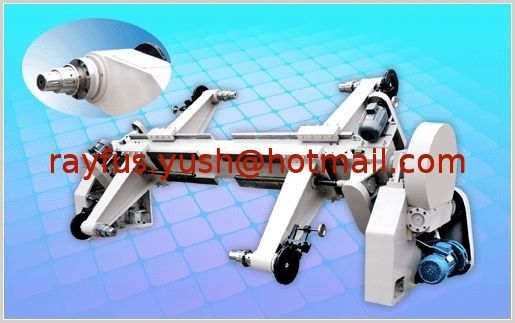

1) This product line consists of three single machines, Electrical Shaftless Mill Roll Stand, SF-280 Fingerless type Single Facer, NC Rotary Cutter, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.



Max Effective Width 1100~2200mm
Max Paper Roll Diameter 1400mm
Max Paper Roll Weight 2000kg
Corrugating Roller Φ280mm, 48CrMo alloy steel, hardness HRC58°-60°
Cutting Length 300~9999mm
Cutting Precision ±1.5mm
Design Speed 80m/min
Heating Method Steam Heating
Economic Working Speed 60~80m/min



Single Facer Corrugation Line, Mill Roll Stand + Single Facer + Rotary Cutter

Single Facer Corrugation Line, Mill Roll Stand + Single Facer + Rotary Cutter

Single Facer Corrugation Line, Mill Roll Stand + Single Facer + Rotary Cutter

Single Facer Corrugation Line, Mill Roll Stand + Single Facer + Rotary Cutter
