Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing

Certification
Good quality Flexo Printer Slotter Die-cutter for sales
Good quality Flexo Printer Slotter Die-cutter for sales
I'm Online Chat Now

Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing

China Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier
Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier

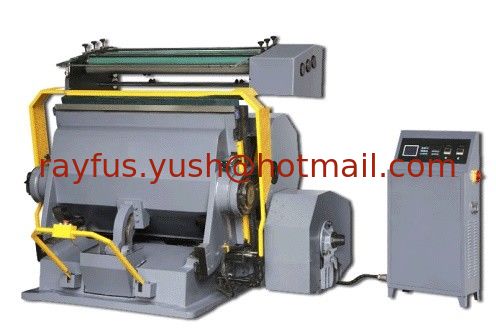

Large Image :  Semi-auto Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing

Product Details:

Place of Origin: China
Brand Name: Yush
Certification: CE
Model Number: MY-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB: 80000~120000USD
Packaging Details: Plastic Film or Wooden Box
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detailed Product Description

MY-S Semi-auto Die-cutting and Creasing Machine

1) MY-S Semi-auto Die-cutting & Creasing Machine is special equipment applying to die-cutting of advanced colored boxes made.

2) The machine combines several advantages of die-cutters both at home and abroad.

3) Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper.

4) Front, back and side position mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.

5) The interface can display various digital information of machine such as working speed, amount of sheet processed, total running time, etc.

6) It is easy to eliminate troubles according to the display of trouble shooting.

7) Transducer is adopted to control the main motor in achieving stepless speed variation.

8) The machine has a lot of sensors and safe-ensuring devices to guarantee the safety of operators.

9) Front and back pressure can be adjusted separately. It is convenient to stop the machine by hand.

10) It can also realize die-cutting without gripper edge.

Max Sheet Size

1060*760~1500*1100mm

Min Sheet Size

350*400~450*550mm

Max Die-cutting Size

1050*750mm~1470*1080mm

Max Pressure

300N/cm2

Die-cutting Precision

±0.1mm

Paperboard Sheet

200~2000gsm

Corrugated Sheet

1~8mm

Max Stacking Height

1200mm

Design Speed

4500sheets/h
