Chain type Flexo Printer Die-cutter, Flexo Printing + Rotary Die-cutting + Creasing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Carton Printer Slotter Die Cutter Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | Customized | Warranty: | One Year |
| Color: | Customer's Request | Condition: | New |
| Usage: | For Carton Print Slotting And Die Cutting | ||
| High Light: | Chain type Flexo Printer Die-cutter,Semi-auto Flexo Printing Die-cutting Machine,Corrugated Carton Making Machine |
||

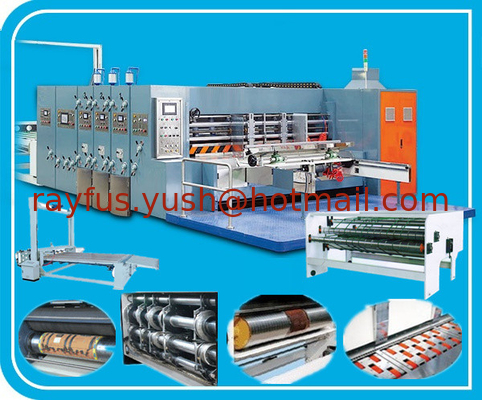

Chain type Flexo Printer Die-cutter
1) YKM Chain type Flexo Printer Die-cutter could do 1~5 colors printing, edge-cutting, creasing, slotting, corner-cutting, die-cutting, creasing, etc. at one process.
2) The electric appliances of a whole machine adopt the excellent product by the domestic produces.
3) Adopt cross slider transmission. Adopt spouting style cycle lubricate.
4) All rollers are chrome plated. Adopt high grade rubber roller anilox roller, can print elegant pattern.
5) Adopt pneumatic uplift plate, pneumatic lock close, electric equal ink, pneumatic supply ink, electric economy separate and retune, separate and retune pneumatic brakes, photo electricity recorded, etc.
6) Phase adjustment adopts planet gear structure, digital input.
|
Max Sheet size |
900*1200mm~1600*3000mm |
|
Min Sheet Size |
300*400~500*600mm |
|
Max Printing Area |
900*1000mm~1600*2800mm |
|
Max Die-cutting Size |
900*1000mm~1600*2800mm mm |
|
Design Speed |
60pcs/min |
