Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing

China Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier
Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing supplier

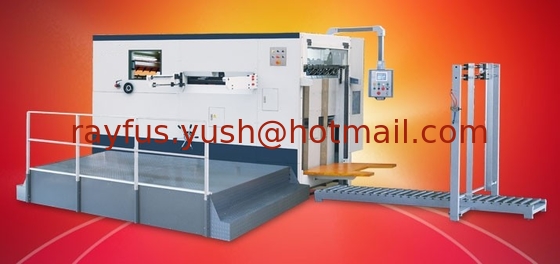

Large Image :  Automatic Die-cutting and Creasing Machine, Flatbed Die-cutting + Creasing

Product Details:

Place of Origin: China
Brand Name: Yush
Certification: CE
Model Number: MY-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB: 120000~200000USD
Packaging Details: Plastic Film or Wooden Box
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 10 sets per month
Detailed Product Description

MY-A Automatic Die-cutting and Creasing Machine

1) MY-A Automatic Die-cutting & Creasing Machine adopts automatic top suction head feeding system, more suitable for paperboard or thin E-flute corrugated cardboard.

2) Front, back and side position mechanism ensures perfect die-cutting precision.

3) Adopt intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.

4) The interface can display various digital information of machine, working speed, amount of sheet processed, total running time, etc.

5) It is easy to eliminate troubles according to the display of trouble shooting.

6) Adopt transducer to control the main motor to achieve stepless speed variation.

7) Equipped with sensors and safe-ensuring devices to guarantee safe operation.

8) Front and back pressure can be adjusted separately.

9) Convenient to stop machine by hand, could also die-cutting without gripper edge.

10) Equipped with auto stripping system and auto stacking unit.

Max Sheet Size

1060*760~1500*1100mm

Min Sheet Size

350*400~450*550mm

Max Die-cutting Size

1050*750mm~1470*1080mm

Max Pressure

300N/cm2

Die-cutting Precision

±0.1mm

Paperboard Sheet

200~2000gsm

Corrugated Sheet

1~8mm

Max Stacking Height

1200mm

Design Speed

7500sheets/h

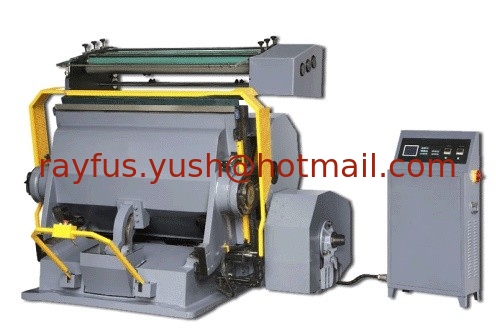

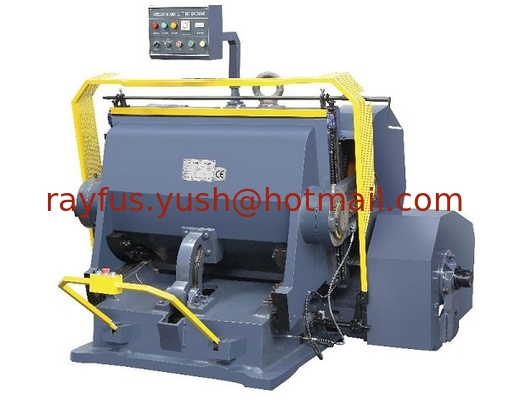

Platen Die cutting and Creasing Machine, Platen Die-cutting + Creasing
