Automatic Paper Roll to Sheet Cutter, Automatic Paper Reel Sheeter Stacker
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Paper Cutting Machine | Computerized: | Yes |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | High Quality Paper Roll Cutting Machine Digital Cutter For Paper |
| Color: | Customizied | Speed: | 10-140times/min |
| Precision: | High Precision | Certification: | CE |
| High Light: | Automatic Paper Roll to Sheet Cutter,Automatic Paper Reel Sheeter Stacker,Automatic Paper Reel Sheeting Stacking Machine |
||

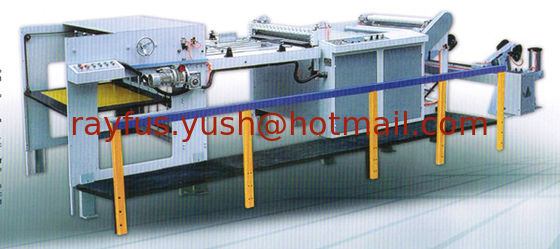

QZJ-B Automatic High-speed Paper Roll to Sheet Cutter
1) QZJ-B Automatic High-speed Paper Roll to Sheet Cutter adopts servo-motor to control cutting length. It is equipped with photoelectric tracing correction system, could also do high-precision cross-cutting, automatically collect and stack the finished products.
2) Transmission system adopts pneumatic system, hydraulic system, photoelectric sensor, etc. centralized control. The material feeding system adopts hydraulic lifting device. This machine integrates photo, electric, hydraulic, pneumatic, etc. together, easy to operate, high-precision cut, stable and low noise. Frequency adjust motor speed, auto counting, alarm stopping, tension with digital display.
3) This machine is suitable for sheeting large reel materials, such as paper, paper plastic complex material, colorful printed complex material, etc.
4) It is widely used for application in the industry of paper processing & printing package.
|
Paper Thickness |
80~400gsm |
|
Max Paper Roll Width |
1100~1600mm |
|
Max Paper Roll Diameter |
1500mm |
|
Cutting Length |
200~1200mm |
|
Cutting Precision |
±0.5mm |
|
Max Stacking Height |
1200mm |
|
Design Speed |
80m/min |
