Automatic Flute Laminator Stacker Machine, 3-Ply or 5-Ply, Turnover Stacker, Straight output or Side output

Large Image : Automatic Flute Laminator Stacker Machine, 3-Ply or 5-Ply, Turnover Stacker, Straight output or Side output

Product Details:

Place of Origin:	China
Brand Name:	YUSH
Certification:	CE
Model Number:	BZJ-D

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	US$ 40000~100000 per set
Packaging Details:	1set per 1*40' container
Delivery Time:	45 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union
Supply Ability:	15sets per month

Contact Now

Detailed Product Description

Automatic Flute Laminator Stacker

1)BZJ-F Series Automatic 5-layer Laminator is the special designed advanced product for multi-ply flute laminating, easy operation, simple maintenance, high speed, low noise, high accuracy, etc.

2)This machine mainly adopts Japan belt transmitting, soft, tough, durable, wear-resistant and pull-resistant, to ensure high precision and long use-life.

3)Adopt high-tech control system, automatically supply glue while machine working, equipped with glue circulation system, glue adjustable according to different cardboard laminating requirements, glue coating on the cardboard uniform, to ensure nice product quality and save glue cost also.

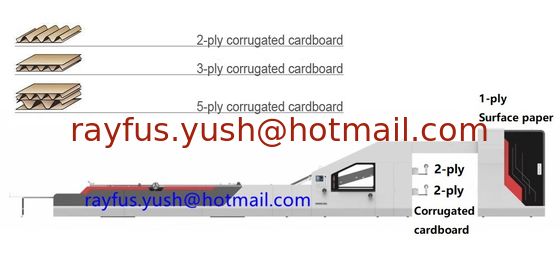

4)This machine adopts suction belt to transmit corrugated cardboard, suitable for A/B/C/D/E/F flutes, 3/4/5-layer, high-speed, high-precision and smoothly output.

Max Sheet Size	13001100mm~16001200mm
Min Sheet Size	600*600m
Surface Paper	≥150gsm
Bottom Sheet	≥450gsm or Corrugated Sheets
Laminating Precision	±1.5mm
Design Speed	120pcs/min

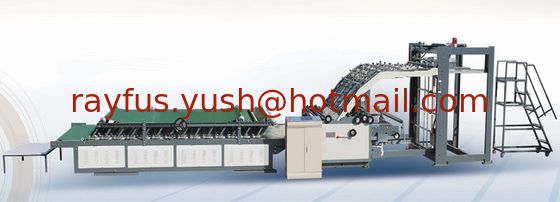

FZDM Automatic Pile Turner Stacker (for Laminator)

Functional Specifications:
1) Automatic Pile Turner Stacker machine is special designed for laminator machine, could work inline with Laminator machine from different suppliers.
2) Automatically stack laminated sheets to piles, it can do collecting, piling, turning, stacking functions automatically.
3) Collection unit pneumatic jogging device, to ensure sheets pile tidy.
4) Intermittent turning function could realize sheets normal and turnover stack, to avoid laminated sheets curving effectively, save labor and time.
5) Motorized side-output automatically, save space and save labor also.
