| Printing Plate: | Made To Customer Request | Suitable Machine: | Flexo Printing |
|---|

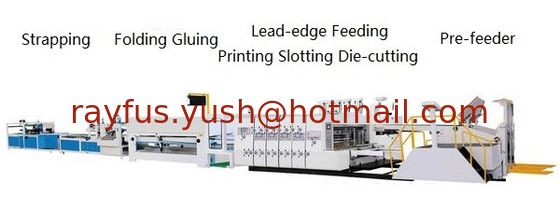

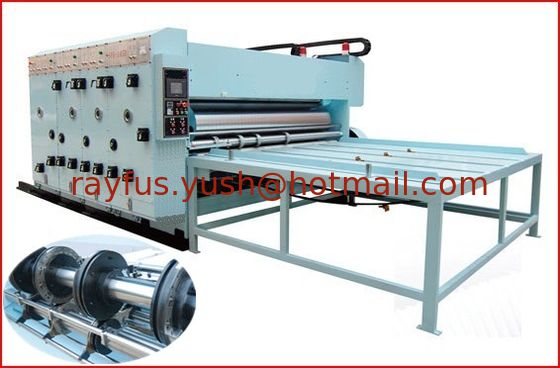

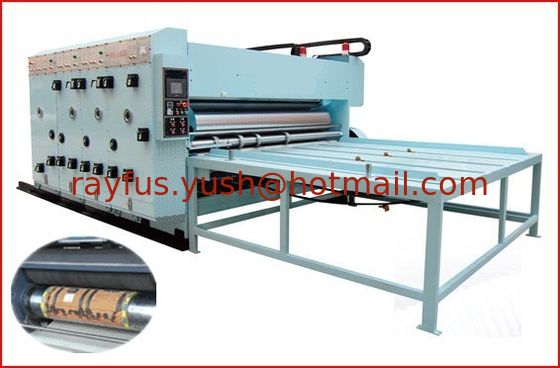

1) This machine can do 1~5 colors printing, edge-cutting, slotting, corner-cutting, punching, die-cutting, creasing etc. At one process.
2) The electric appliances of a whole machine adopt the excellent product by the domestic produces.
3) Adopt cross slider transmission. Adopt spouting style cycle lubricate.
4) All rollers are chrome plated. Adopt high grade rubber roller anilox roller, can print elegant pattern.
5) Adopt pneumatic uplift plate, pneumatic lock close, electric equal ink, pneumatic supply ink, electric economy separate and retune, separate and retune pneumatic brakes, photo electricity recorded, etc.
6) Phase adjustment adopts planet gear structure, digital input.
| Model | YKM | YKM-Q |
Max Sheet size |
900*1200mm~1600*3000mm
|
900*1200mm~1600*3000mm |
Min Sheet Size |
300*400~500*600mm
|
300*400~500*600mm |
Max Printing Area |
900*1000mm~1600*2800mm
|
900*1000mm~1600*2800mm |
|
|
120*120*120*120mm
|
160*160*160*160mm |
Max Slot Depth |
225~400mm
|
225~400mm |
| Max Die-cutting Size | 850*1000mm~1550*2800mm | 850*1000mm~1550*2800mm |
| Max Stacking Height | 1500mm | 1500mm |
Design Speed |
60pcs/min
|
100~200pcs/min |
![]()
![]()
![]()
![]()
