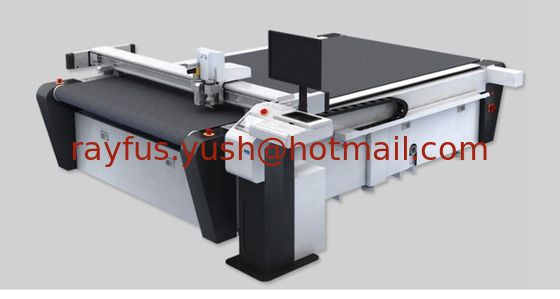

Automatoic Carton Box Maker, Corruagted Carton Box Forming Machine, Cutting + Creasing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | Made To Customer Request | Voltage: | Made To Customer Request |
|---|---|---|---|
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |

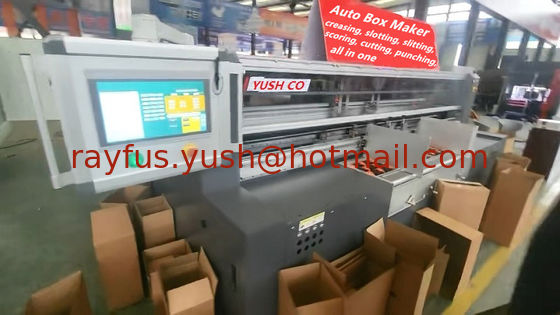

Auto Box Maker
1. Auto Box Maker machine no need of die-plate, suitable for small urgent orders of various different desinged carton box.
2. This machine could finish carton box creasing, slotting, slitting, scoring, cutting, punching, etc. all in one process.
3. Automatic lead-edge feeding, accurate positioning, little error, stable running, low noise.
4. Touch screen control, simple change orders, easy operation.
2. This machine could finish carton box creasing, slotting, slitting, scoring, cutting, punching, etc. all in one process.
3. Automatic lead-edge feeding, accurate positioning, little error, stable running, low noise.
4. Touch screen control, simple change orders, easy operation.
| Max Feeding Size | Width 2500mm, length no limit |
| Min Feeding size | Width 200mm, length 650mm |
| Cutting Material | Corrugated Cardboard 2~10mm, Paperboard <=1200gsm, etc. |
| Change Order Time | 1~40s |
| Cutting Precision | ±2mm |
| Cutting Box Type | More than 100 kinds of carton box type, unlimited slotting |
| Feeding System | Automatic lead-edge feeding |
| Processing Capacity | 6~10pcs/min |
| Standard Slotting Knife | 500mm*2sets |
| Slitting Knife | 4sets |
| Creasing Knife | 4sets |
| Cross-cutting Knife | 1set |
| Hole Puching Knige | 120mm*2sets |
| Aire compressor | 0.6~0.7MPa, air consumption 75L/min |
| Power & Voltage | About 15kw, 380V (±10%), 50Hz, 3-Phase |
| Weight & Dimension | About 4000kg, 3000*4000*2200mm |
Yush Machine Group Co., Ltd. is a professional enterprise specializing in R&D, production, sales and service of complete manufacturing equipments of corrugated cardboard, hard paperboard, carton, box, paper, etc. (all machines to make according to customer request available)
Our main products consists of
2/3/4-ply Hard Cardboard Production Line, 3/5/7-layer Corrugated Cardboard Production Line (Single Facer Corrugation Line, Flute Laminator, Shaftless Mill Roll Stand, Preheater, Single Facer, Overhead Bridge, Multiple Preheater, Multiple Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Conveyor Stacker, NC Duplex Cut-off, NC Double-layer Stacker, etc.)
Carton Box Making Machine (Slitter Scorer, Slotter, Die-cutter, Flexo Printer Slotter Die-cutter Stacker, Folder Gluer, Stitcher, Strapper, etc.)
Paper Box Making Machine (Cardboard Laminator, Film Laminator, Die-cutting and Creasing Machine, Folder Gluer, Cardboard Slotter, Box Corner Gluer, Sheet Feeding and Pasting Machine, etc.)
Paper Products Related Machines (Automatic Paper Roll to Sheet Cutter, Program-control Paper Guillotine, Automatic Slitter Rewinder, Automatic Reel Flexo Printer, Paper Tube & Core Making Machine, Paper Corner Protector Making Machine, Paper Cup Making Machine, Paper Straw Making Machine, etc.)
