Disc Pelleting Machine, for Compound Fertilizer or Biological Fertilizer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Automatic Grade: | Automatic | Voltage: | 220v/380v/440v |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Driven Type: | Electric | Certification: | CE |
| Color: | Customized Color |

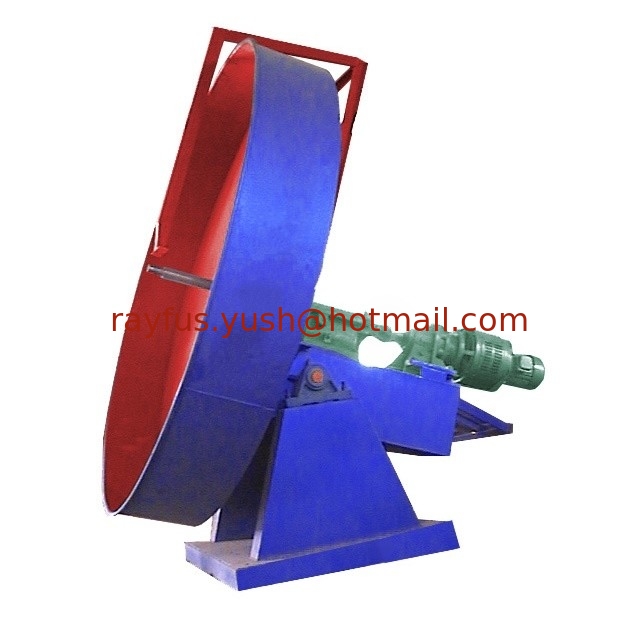

Disc Pelleting Machine
☆ YP series Disc Pelleting Machine, suitable for compound fertilizer or boilogical fertilizer.

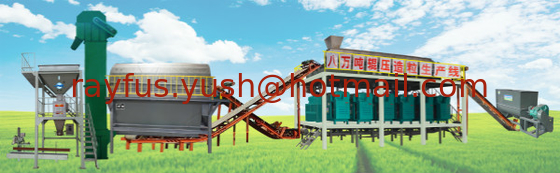

☆ To satisfy customer requests, we design and manufacture complete set machines as fertilizer production line (Blender, Grinder, Elevator, Conveyor, Screener, Weigher, etc.), different production capacity according to customer requests.
☆ Mixed material uniformly feed into disc, under the function of gravity, centrifugal and friction force, material moving up and down in disc, and output needed granule.
☆ Simple structure, high intensity, high speed rotary, easy operation, efficient granule, uniform granule, greatly reduce production cost.
| Model | YP-2.8 | YP-3.0 | YP-3.2 | YP-3.5 |
| Capacity | 4ton/h | 5ton/h | 7ton/h | 9ton/h |
| Disc Diameter | 2800mm | 3000mm | 3200mm | 3500mm |
| Disc Height | 450mm | 480mm | 500mm | 500mm |
| Rotary Speed | 17r/min | 14r/min | 12r/min | 11r/min |
| Motor Power | 7.5kw | 11kw | 11kw | 15kw |
| Remarks: To make machines according to customer request available. | ||||
Contact Details
Yush Carton Machine Factory
Contact Person: Mr. Rayfus
Tel: +86-156-9019-6799
Fax: +86-318-573-6656
Other Products
-
Animal Feed Pellet Making Machine, for Animal Fodder Making, Forage Pellet
-
High-pressure Ball Pressing Machine, Roll Pressing Granulator Machine
-

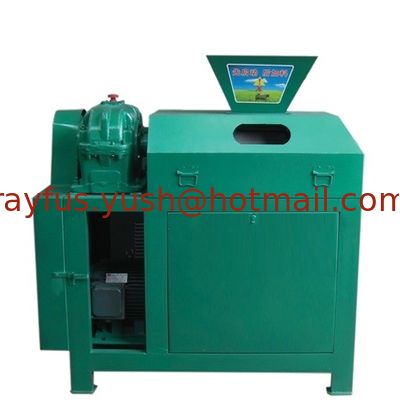

Roll Pressing Granulator, for Fertilizer Powder to Pellet making machine
-

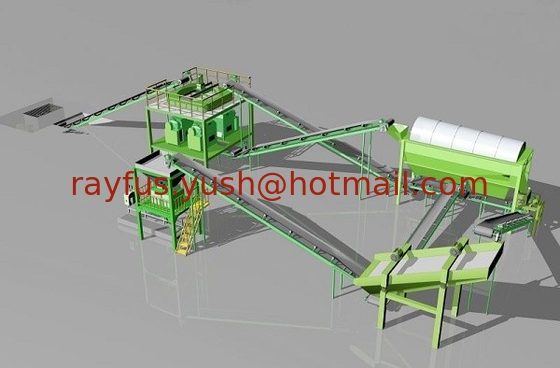

Compound Fertilizer Pellet Production Line
-

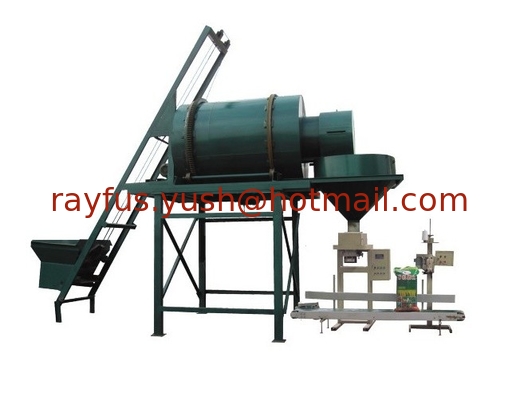

BB Fertilizer Production Line, Bulk Blending Fertilizer Mixer
-

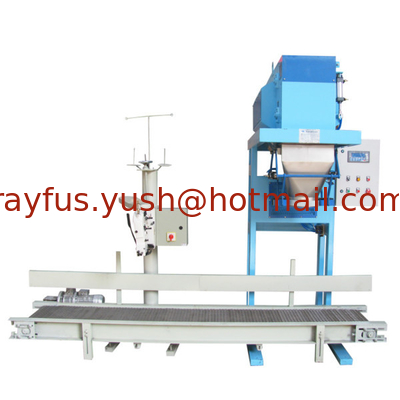

Weigher Packager, for Powder, Granule or Compound Material
