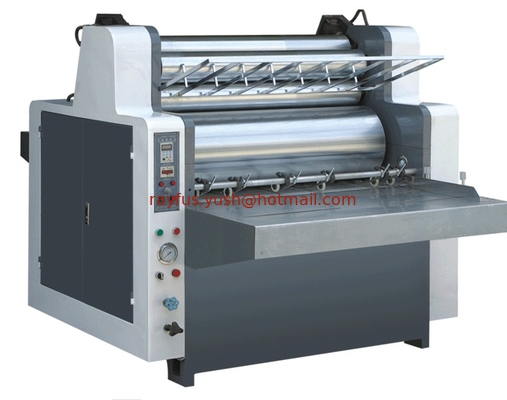

Automatic Pneumatic Hydraulic Cardboard Laminator, Surface Paper + Paperboard Lamiantion, 200~800gsm

Functional Specifications:

1. KFMJ-A Fully-automatic Cardboard Laminator machine adopts new type feeder for both top paper and bottom paper, and adopts the overlapping paper feeding method, to ensure paper feeding process more stable and accurate.
2. The glue quantity on bottom paper can be adjusted to fit different requirements of the laminated paper. Equipped with glue adjustment system, which can be operated without stopping the machine, to ensure the glue can be pasted thinner and more uniform, to improve work efficiency and save glue.
3. The bottom paper and surface paper are positioned, laminated, and initially pressed by a pair of high-strength paper-biting composite rollers, and then enter into the strong pressing rollers, to output after several times of pressing, and the finished products enter into the stacking machine, to stack sheets on three sides.
4. The machine is equipped with PLC programmable controller, settled with multi-level pressure, and automatically controls the hydraulic station.
5. The products produced at high lamination accuracy, bottom paper and surface papers are firmly and smoothly combined, the finished products can enters into the next process immediately, such as die-cutting without waiting for curing.
6. Automated production, high efficiency, greatly reduces production costs, and can create considerable benefits for enterprises.
7. The automatic production line is suitable for paper laminating of packaging products, such as tag, poker card, wine box, shoe box, etc., enhance production process, shorten process time, and improve economic benefits of the enterprises.

Technical Parameters:
