Auto Box Maker, Automatic Carton Box Cutting Machine, Lead-Edge Feeding
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Automactic Carton Box Cutting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | Customized | Warranty: | One Year |
| Color: | Customer's Request | Condition: | New |
| Function: | Corrugated Carton Printing |

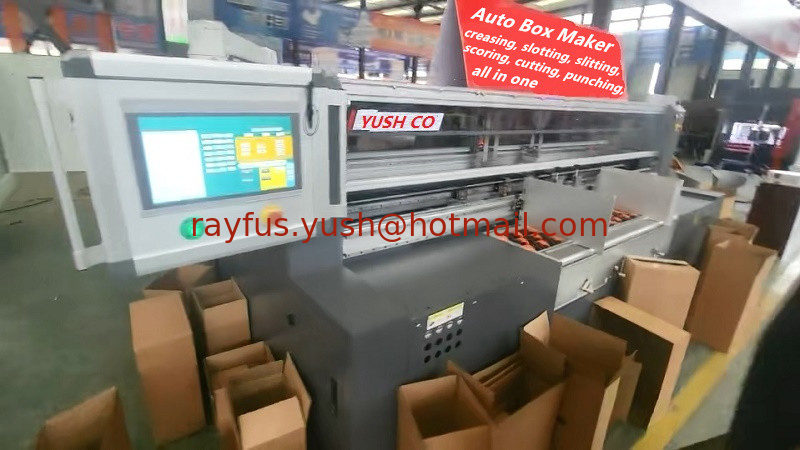

Auto Box Maker
1. Auto Box Maker machine no need of die-plate, suitable for small urgent orders of various different desinged carton box.
2. This machine could finish carton box creasing, slotting, slitting, scoring, cutting, punching, etc. all in one process.
3. Automatic lead-edge feeding, accurate positioning, little error, stable running, low noise.
4. Touch screen control, simple change orders, easy operation.
2. This machine could finish carton box creasing, slotting, slitting, scoring, cutting, punching, etc. all in one process.
3. Automatic lead-edge feeding, accurate positioning, little error, stable running, low noise.
4. Touch screen control, simple change orders, easy operation.
| Max Feeding Size | Width 2500mm, length no limit |
| Min Feeding size | Width 200mm, length 650mm |
| Cutting Material | Corrugated Cardboard 2~10mm, Paperboard <=1200gsm, etc. |
| Change Order Time | 1~40s |
| Cutting Precision | ±2mm |
| Cutting Box Type | More than 100 kinds of carton box type, unlimited slotting |
| Feeding System | Automatic lead-edge feeding |
| Processing Capacity | 6~10pcs/min |
| Standard Slotting Knife | 500mm*2sets |
| Slitting Knife | 4sets |
| Creasing Knife | 4sets |
| Cross-cutting Knife | 1set |
| Hole Puching Knige | 120mm*2sets |
| Aire compressor | 0.6~0.7MPa, air consumption 75L/min |
| Power & Voltage | About 15kw, 380V (±10%), 50Hz, 3-Phase |
| Weight & Dimension | About 4000kg, 3000*4000*2200mm |
