Paper Counting Machine, 10.2" Touch Screen, High precision, High speed, Computer control
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Paper Counting Machine | Computerized: | Yes |
|---|---|---|---|
| Certification: | CE | Condition: | New |
| Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Name: | Manual Sliding Paper Cutter/Paper Trimmer A4 | Color: | Customizied |
| Precision: | High Precision |

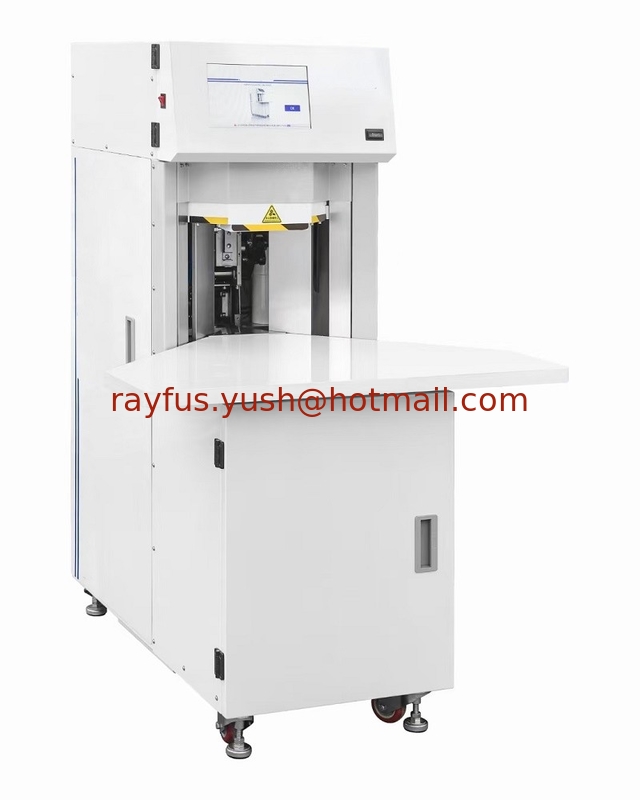

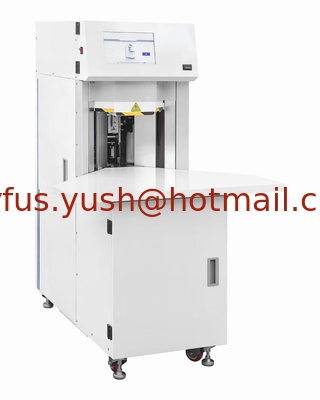

10.2" Touch-screen Paper Counting Machine
Functional Specifications:
- Widely use range of paper, suitable for 80~400gsm paper, such as copy paper, carbon paper, art paper, lithography paper, coated paper, thin paperboard, etc.
- 10.2" touch screen, intuitive and friendly human-machine interface, hierarchical and classified menu, simple and easy operation.
- Air pressure and balance hardware no-adjust function, software one-key set balance self-adaptation and pressure parameters, greatly simplify the daily operation and adjustment.
- Equal or non-equal tag mode, suitable for various flexible tag interval applications.
- Dual-blade counting mechanism, high accurate counting, none damage for paper corner, it is the ideal inspection equipment for paper processing companies.
Technical Parameters:
| Paper Counting Speed | 0~1500sheets/min |
| Suitable Paper Thickness | 80~400gsm |
| Suitable Paper Size | A5 148*210mm~B1 707*1000mm |
| Stacked Paper Height | 220mm |
| Tag Size | 6*70mm |
| Tag Insert Quantity | 2~1000sheets |
| Operation Table Height | 760mm |
| Power & Voltage | About 600w, 220V (±10%), 50/60Hz, Single-Phase |
| Weight | About 200kg, 1000*1100*1500mm |
Tag:
sheet cutter
Contact Details
Yush Carton Machine Factory
Contact Person: Mr. Rayfus
Tel: +86-156-9019-6799
Fax: +86-318-573-6656
Other Products
-
Automatic Paper Roll to Sheet Cutter Stacker, Automatic Paper Reel Sheeter Stacker
-

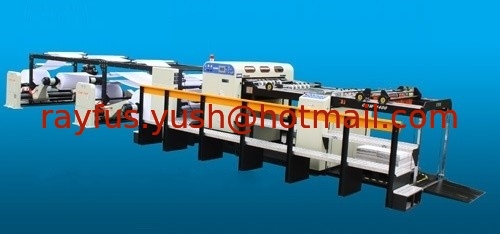

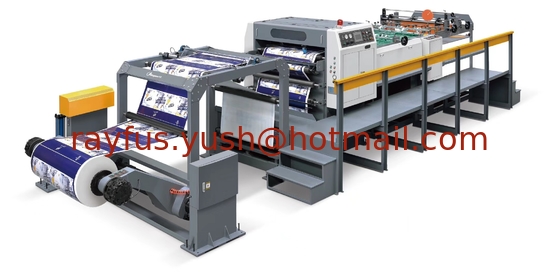

Automatic High-speed Paper Roll Sheeter Stacker, Paper Reel to Sheet Cutter Stacker, with Printing Mark Sensor
-
Automatic High-speed Paper Roll Sheeter Stacker, for 2-rolls or 4-rolls
-
Automatic High-speed Helical-knife Paper Roll Sheeter Stacker, for 1-rol, 2-roll, 4-roll, 6-roll
-

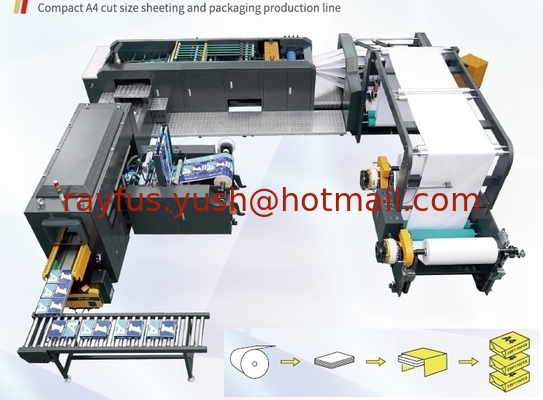

Automatic High-speed A4 Paper Sheeting & Ream Packaging Line, 500 sheets per ream, for 2-roll or 4-roll
-
