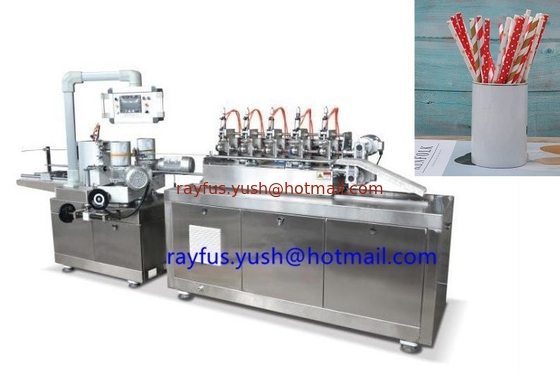

Paper Straw Making Machine, Paper Straw Forming Machine, for drinks

: Large Image : Paper Straw Making Machine, Paper Straw Forming Machine, for drinks

Product Details:

Place of Origin:	China
Brand Name:	YUSH
Certification:	CE, ISO
Model Number:	XGJ-50

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 20000~30000 /set
Packaging Details:	film wrapped, wooden box, etc.
Delivery Time:	30 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	100sets per month

Contact Now

Detailed Product Description

Mould:	Made To Customer Request

Paper Straw Forming Machine

1) high speed paper straw machine integrates raw material feeding ,guling,winding and cutting on one time.
2) The machine within CNC multi-tool cutting system, can make any size paper straw, like the size 6mm,8mm,10mm,etc.
3) the machine is controlled by PLC, the host machine is equipped with frequency conversion speed regulation and the man-machine interface is a touch screen, with simple settinng ad convenient operation.
4) the cutting part adopts te multi-tool cutting system for serving custtomers and the servo motor keeps track of cutting synchronously with a high precision and time-saving efficiency.
5) the body and main parts are made of stainless steel to ensure the product is hygienic and enviornment-friendly.

Technical parameter

Paper layer	3 layer (in side two layer the paper use 120gsm paper, outside layer paper use 60gsm)
Guling unit	3 layer
The straw inner size	4.7-20mm
The raw material	Pure wood pulp paper
The straw wall thickness	0.5-2mm
The speed	35-40m/min
Cutting system	servomotor synchronouos tracking ;knives are cutting in line(standard 5 pcs)
Guling way	Single and double side (50kg glue can make 200,000pcs straw)
Power	380V phase 50HZ
Operation person	1-2person
Working air pressure	0.6Mpa
belt	5pcs
mandril	2set

Remarks: mould made to customer requirements.
