Auto Splicer, for paper roll of Corrugated Cardboard Production Line

China Auto Splicer, for paper roll of Corrugated Cardboard Production Line supplier
Auto Splicer, for paper roll of Corrugated Cardboard Production Line supplier Auto Splicer, for paper roll of Corrugated Cardboard Production Line supplier Auto Splicer, for paper roll of Corrugated Cardboard Production Line supplier Auto Splicer, for paper roll of Corrugated Cardboard Production Line supplier Auto Splicer, for paper roll of Corrugated Cardboard Production Line supplier Auto Splicer, for paper roll of Corrugated Cardboard Production Line supplier

Large Image :  Auto Splicer, for paper roll of Corrugated Cardboard Production Line

Product Details:

Place of Origin: China
Brand Name: Yush
Certification: CE
Model Number: ASP

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: FOB: 20000~40000USD
Packaging Details: Plastic Film or Wooden Box
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Minimum Order Quantity: 1 set
Detailed Product Description
Size: According To Customer Request

Auto Splicer

Features:

Improving the efficiency of mill roll and mill roll can be fully used up

Zero tail splicing, the sticking area is quite small which can reduce the consumption

Non-stop slicing which can increase the working efficicency dramatically

Automatic tension control which indicates the advantages of easy operation and humanization

Simple and quick through structure which indicates the advantages of easy operation and humanization

Special design flatenning technology which can eliminate the wrinkle phenomenon dramatically

PLC control with high automation integrated level

Technical parameters:

The maximum width: 1600,1800,,2200,2500mm

The maximum splicing speed: 140-220m/min (based on the paper quality)

The maximum diameter of mill roll: 1500mm

Suitable paper: 90~440g/m2

The minimum strength of extension: 3 N/mm (based on the paper quality and its tension level)

Tension control range: 5~100kg

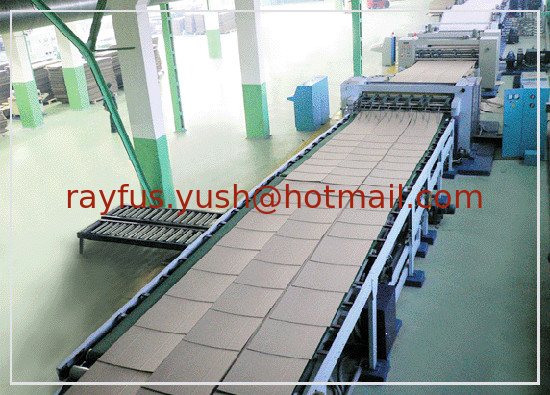

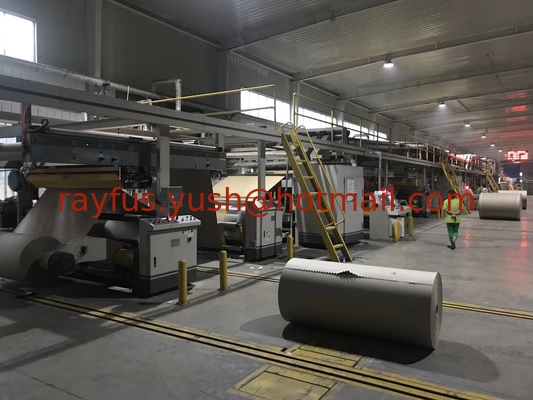

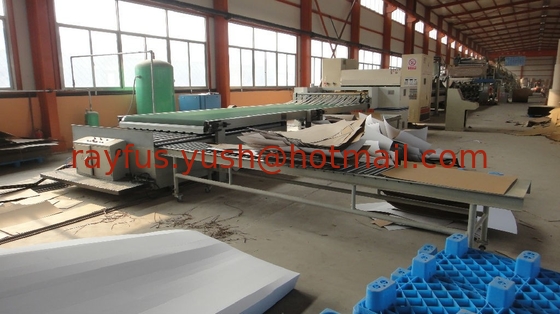

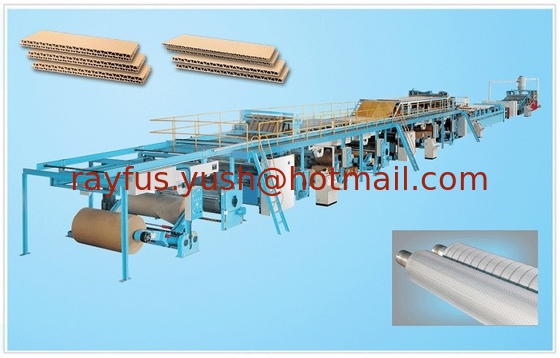

3/5/7-layer Corrugated Cardboard Production Line

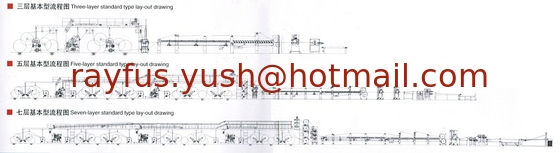

1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.

2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for corrugated carton box factories.



Max Effective Width 1100~2200mm
Max Paper Roll Diameter 1500mm
Max Paper Roll Weight 3000kg
Corrugating Roller Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width 150mm
Cutting Length 500~9999mm
Design Speed 100~200m/min
Heating Method Steam Heating
Economic Working Speed 80~160m/min



3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine

3/5/7-layer Corrugated Cardboard Production Line, Corrugated Cardboard Making Machine
