Single Faced Slitter Cutter Stacker, Single Faced Corrugated Cardboard Slitting + Cutting

China Single Faced Slitter Cutter Stacker, Single Faced Corrugated Cardboard Slitting + Cutting supplier

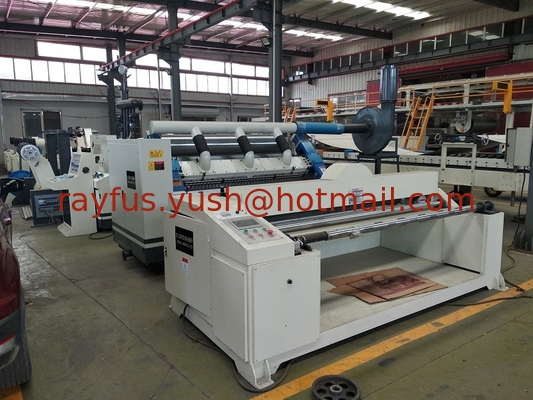

Large Image :  Single Faced Slitter Cutter Stacker, Single Faced Corrugated Cardboard Slitting + Cutting

Product Details:

Place of Origin: China
Brand Name: Yush
Certification: CE
Model Number: DWD-NC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB: 25000~40000USD
Packaging Details: Plastic Film or Wooden Box
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description

DWD-NC Single Faced Slitter Cutter Stacker

1) Computer system to keep order. Man-machine conversation system NC. Automatic adjust cutting speed by cardboard specification and maching.

2) The screen display various production message, we could consult, modification, superaddition and cancel order during running.

3) High quality servo motor, the servo drive system import from Germany.

4) Transmission system adopts oil pump auto-Cye lubricate.

5) Exact and adjustable no gap gear assure knife-edge joggle exactly, good incision quality, high beeline degree, protect knives.

6) Conveyor system after the slitter and cutter is applied to delivery the board on two direction, for rise efficiency and easy stacking.

7) It will be more suitable for large or moderate manufactories of offset printing box.

Max Effective Width

1100~2200mm

Slitting

4-slitter

Cutting Length

300~9999mm

Cutting Precision

±1.0mm

Design Speed

120m/min
