Automatic Grade: | Automatic | Voltage: | 220v/380v/440v |
---|---|---|---|
Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Driven Type: | Electric | Certification: | CE |
Warranty: | One Year | Name: | Single Facer 2 Layer Corrugated Paperboard Production Line |
Color: | Customizable | Machine Type: | Corrugated Paperboard Making Machine |
Usage: | Paper Corrugation | ||
High Light: | Electrical Shaftless Mill Roll Stand,Shaftless Paper Reel Stand,Corrugated Carton Making Machine |
1) ZJ-F Electrical Shaftless Mill Roll Stand structure is double rotary shaft with four arms; Support two paper mill rolls on both arms at the same time.
2) Round-plate type manual brake, the web tension is adjusted at any time.
3) Arm Clamp and rotary structure set fixed torque clutch, operate safety.
4) Each Mill Roll Stand with two sets of Paper Vehicle & Track Rail.
Max Paper Roll Width |
1100~2200mm |
Max Paper Roll Diameter |
1400mm |
Max Paper Roll Weight |
2000kg |

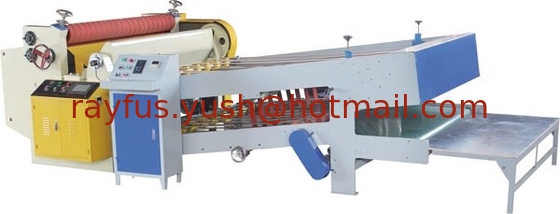

DW-80 Single Facer Corrugation Line
1) This product line consists of three single machines, Electrical Shaftless Mill Roll Stand, SF-280 Fingerless type Single Facer, NC Rotary Cutter, Steam Boiler & Pipeline(customer-owned parts), etc.
2) Kraft Paper Reel to corrugate and glue by Corn Starch Gum, continuously produce and cut to Single Faced Corrugated Cardboard Sheet, and then through Flute Laminator Machine or Sheet Pasting Machine to laminate to 3/5-ply corrugated sheet, press and fix.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for small or medium carton factories.
Max Effective Width | 1100~2200mm |
Max Paper Roll Diameter | 1400mm |
Max Paper Roll Weight | 2000kg |
Corrugating Roller | Φ280mm, 48CrMo alloy steel, hardness HRC58°-60° |
Cutting Length | 300~9999mm |
Cutting Precision | ±1.5mm |
Design Speed | 80m/min |
Heating Method | Steam Heating |
Economic Working Speed | 60~80m/min |
