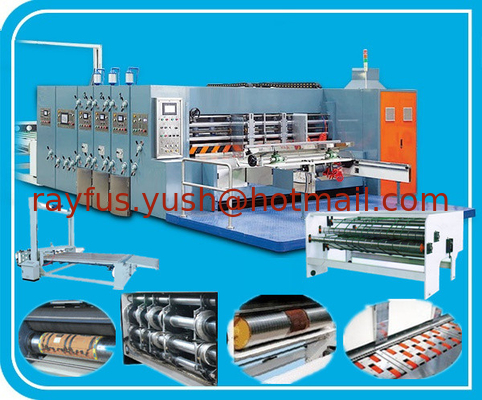

Rotary Die-cutting Unit with Removable Slotting, Inline with Flexo Printer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

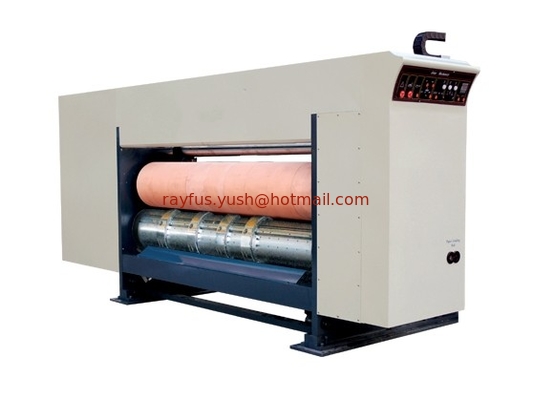

Rotary Die-cutting Unit with Removable Slotting
1) Die-cutting unit with Removable Slotting rings, Same as Rotary Slotting unit while Slotting working, also could remove while die-cutting working.
2) Surface Of The Steel Tube Is Rubbed And Chrome Plated.
3) After Balanced Of Big Drum, The Operation Is Stable.
4) Rubber Roller Adopts Axis Auto Movement Equipment With Movement 40mm.
5) Die-Cutting Roller Phase Adjustment Adopts PLC Program And Color Touch Screen Control.
6) Phase Structure With Planet Gear Design, Long Service Life.
7) All The Intervals Adopt Computerized Adjustment And Digital Setting.
8) Die-cutting unit is driven by servo motor independently, better machine performance.
|
Max Sheet size |
900*1200mm~1600*3000mm |
|
Min Sheet Size |
300*400~500*600mm |
| Max Die-cutting Size | 800*1000~1500*2800mm |
|
Min Slotting Distance |
120*120*120*120mm |
|
Max Slot Depth |
225~400mm |
|
Design Speed |
60~180pcs/min |
